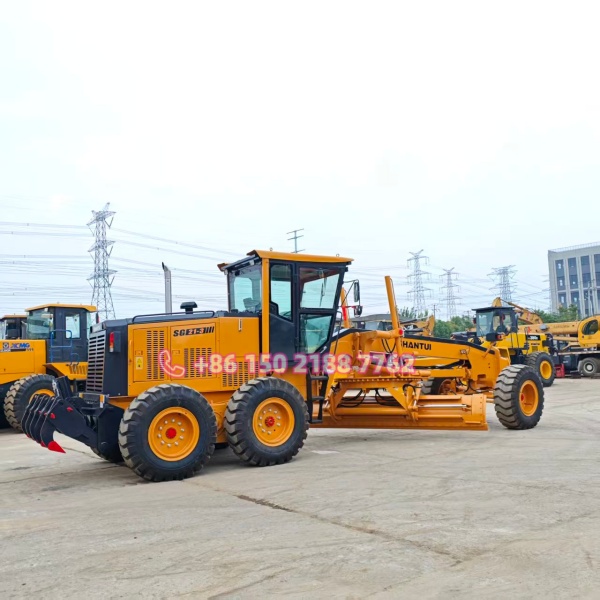

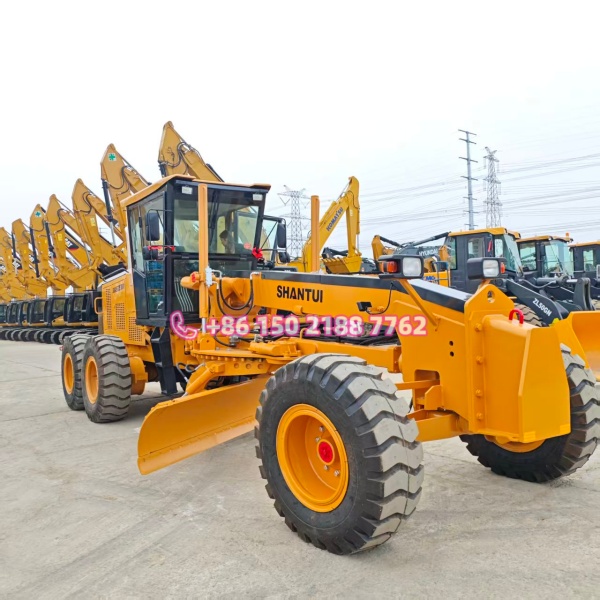

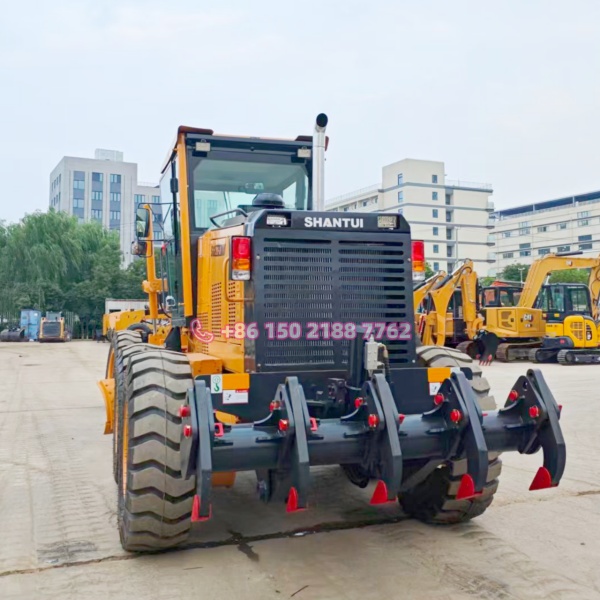

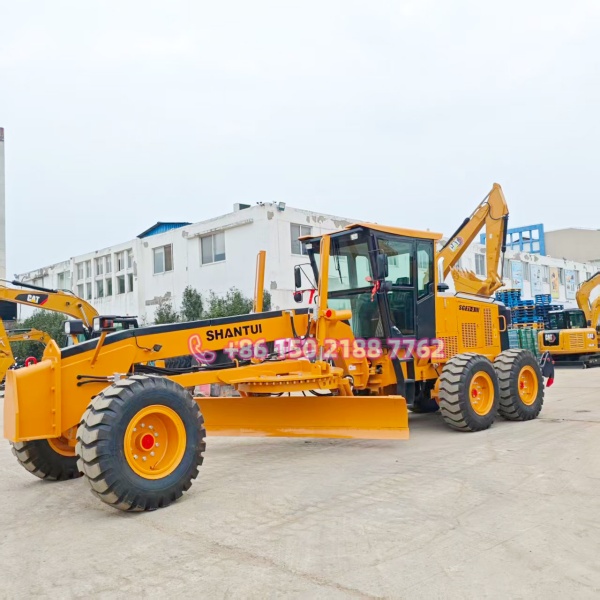

SHANTUI SG21-3 Motor Grader | 17-Ton Class with Cummins/Weichai Power for Sale Shanghai KASTO

Short Description:

Shanghai KASTO Construction Machinery Co., Ltd. supplies the SHANTUI SG21-3 motor grader, a 17-ton class heavy-duty machine engineered for precision grading, road construction, and large-scale earthmoving projects. As a third-generation model in Shantui‘s medium grader lineup, the SG21-3 delivers proven durability, extended operator visibility, and excellent material control.

Engine & Power:

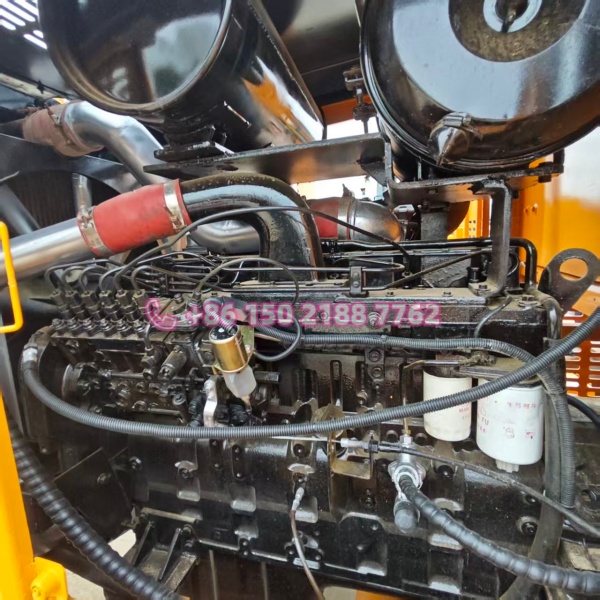

The SG21-3 is available with two proven powerplants. The primary configuration features the Cummins 6CTAA8.3-C215 turbocharged diesel engine, delivering 160 kW (215 hp) at 2,200 rpm with 980 N·m of maximum torque at 1,500 rpm. An alternative configuration pairs the machine with the Weichai WD10G220E21 engine, rated at 162 kW (217 hp) with a 9.726 L displacement.

Blade & Grading Performance:

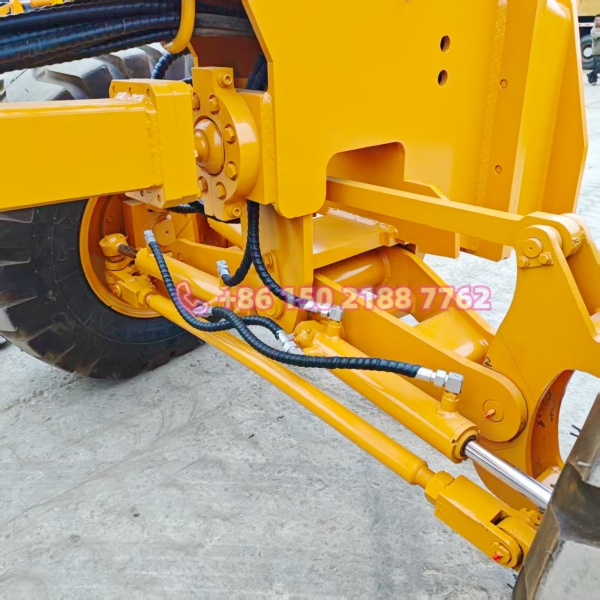

The SG21-3 is equipped with a blade width of 3,660 / 3,965 / 4,270 mm (selectable), a blade height of 635 mm, and a blade cutting angle range of 44°–91° with 360° hydraulic rotation. Maximum cutting depth is 500 mm, and maximum lifting height is 410 mm. The machine achieves a maximum traction force of 90 kN and a gradeability of 20°, ensuring reliable performance on slopes and rough terrain.

Send email to us

Product Detail

Product Tags

SHANTUI SG21-3 Motor Grader | 17-Ton Class with Cummins/Weichai Power for Sale Shanghai KASTO

Product Description

1. Proven Engine – Choose Cummins 6CTAA8.3-C215 (160 kW / 215 hp) or Weichai WD10G220E21 (162 kW / 217 hp) – reliable power for heavy blade work.

2. Strong Blade Performance – 4.27 m max blade width, 635 mm blade height, 500 mm cutting depth, and 360° hydraulic rotation.

3. Smart Transmission – Power-shift with 6F / 3R gears, speeds up to 39.7 km/h forward – efficient mobility across large project areas.

4. Built to Last – 90 kN max traction force, 20° gradeability, and a robust 17-ton chassis for demanding earthmoving.

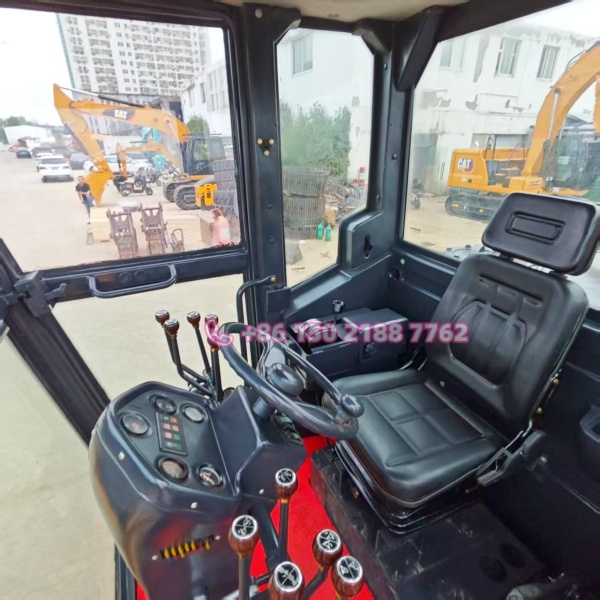

5. Exceptional Visibility – Extended operator sightlines to all working parts below – grade faster and more accurately.

6. Easy Maintenance – Hydraulic and engine components are easily accessible for simplified servicing and higher uptime.

7. Compact Transport – Folds to 2.6 m width and 3.4 m height for easy mobilization.

Item	Specifications
Operating weight	17000 kg
Blade Width	3.7m
Blade Height	635mm
Blade Rotation	360°
Max.Cutting depth	500mm
Max. Traction force	90kN
Length×Width×Height	9,260 × 2,600 × 3,400 mm
Engine Type	Cummins 6CTAA8.3-C215/Weichai WD10G220E21
Rated power	160 kW
