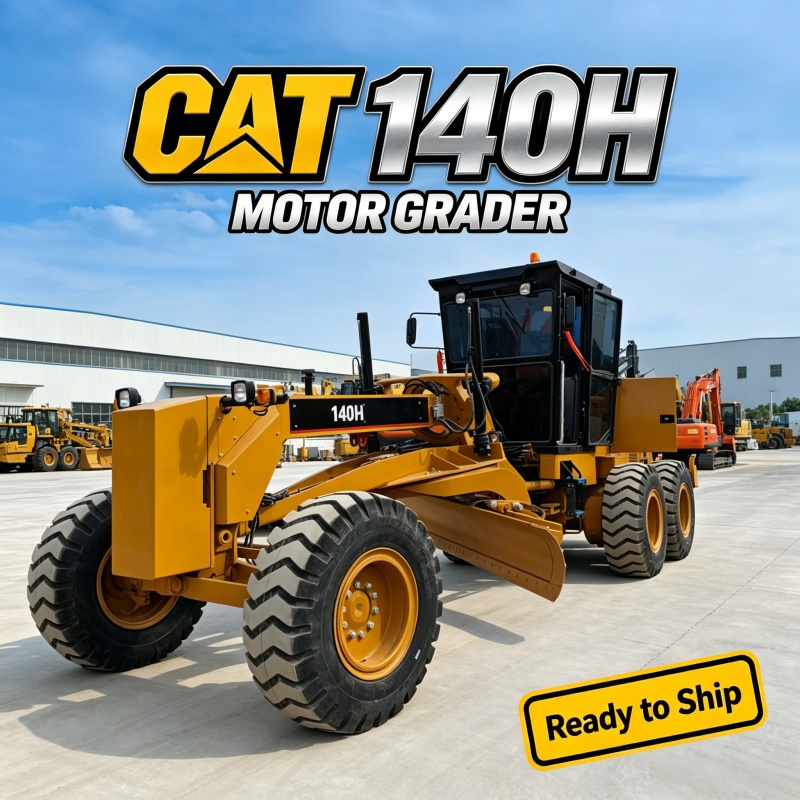

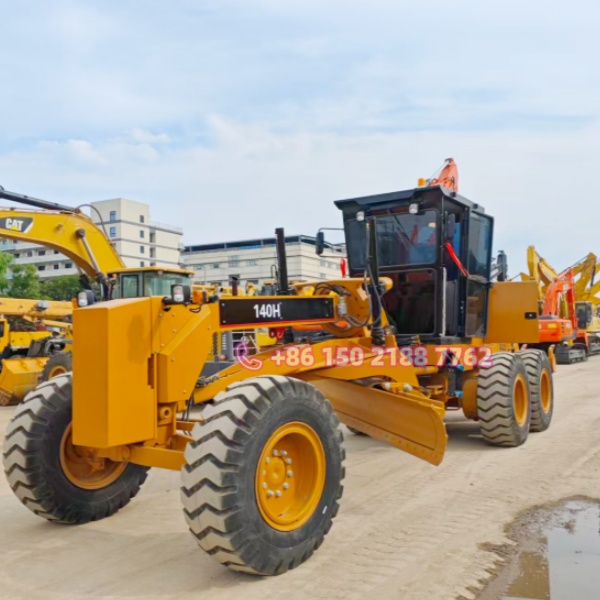

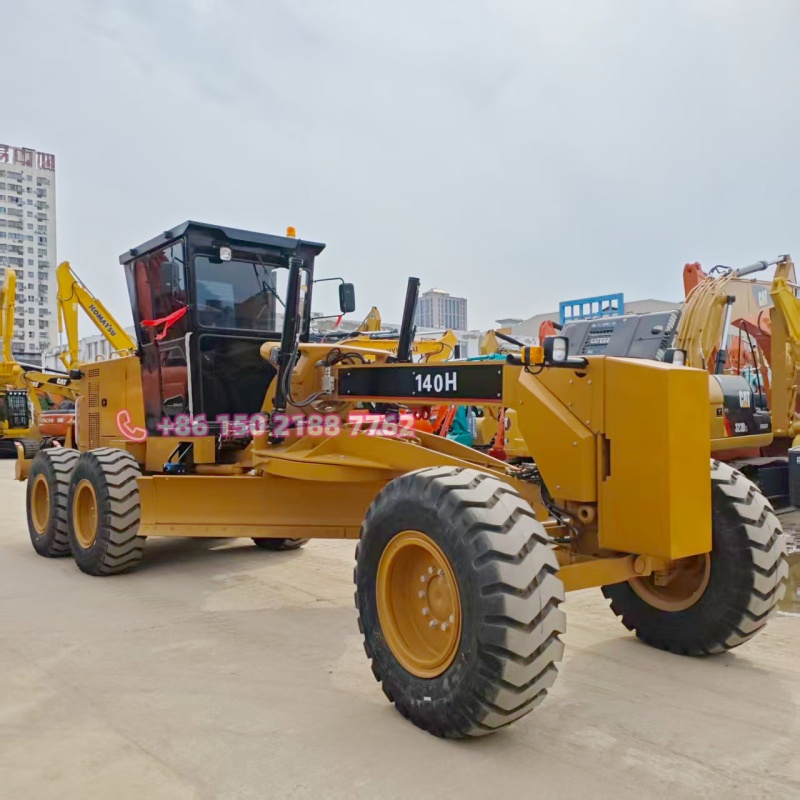

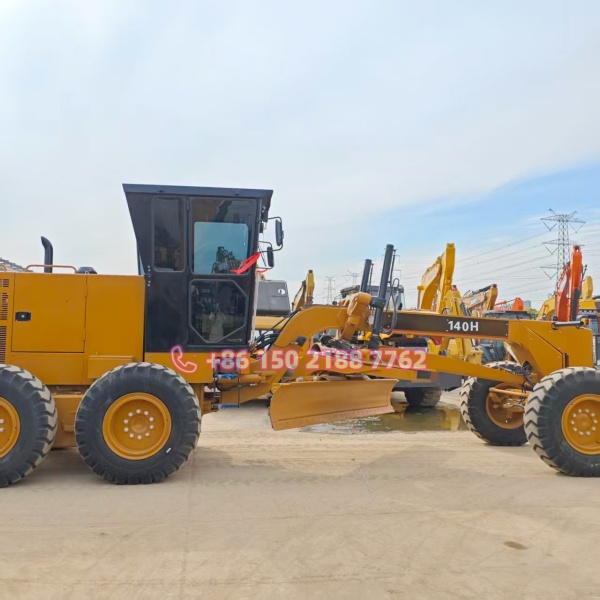

CAT® 140H Motor Grader Road Construction Machinery Available in Stock for Sale

Short Description:

Shanghai KASTO Construction Machinery Co., Ltd. supplies the CAT® 140H motor grader, a proven 14.7–15.6 tonne class machine engineered for precision grading, road construction, land leveling, and heavy-duty maintenance applications. Part of Caterpillar‘s legendary H-Series, the 140H delivers reliable power, durable frame construction, and operator-focused controls for consistent results across demanding job sites.

Engine & Power

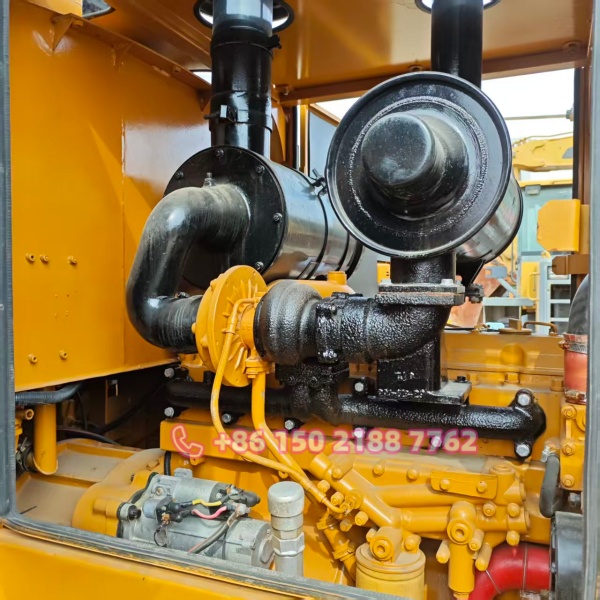

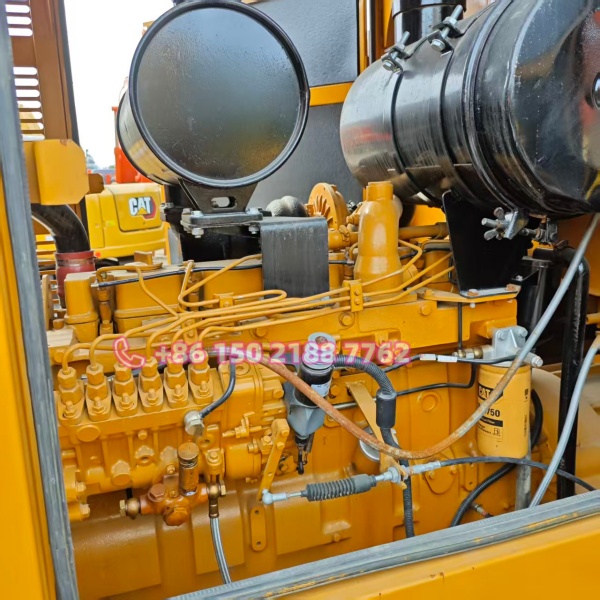

The 140H is powered by a Cat® 3176C DITA ATAAC inline-six turbocharged diesel engine (also offered with the Cat 3306 T in certain configurations), featuring 10.3 L displacement and Variable Horsepower (VHP) technology. Rated power is 138 kW (185 hp) @ 2,000 rpm in gears 3–8, with 123 kW (165 hp) available in gears 1–2 for precise low-speed control. VHP Plus configurations can deliver up to 153 kW (205 hp) in higher gears, maintaining consistent performance under varying loads.

Blade & Grading Performance
The standard moldboard measures 3,658 mm (12 ft) × 610 mm (24 in) , with a maximum blade lift height of 407–480 mm and a maximum cutting depth of 560–715 mm depending on configuration. The blade features 360° continuous circle rotation, a 40° tilt angle, and a 5° cutting angle, enabling precise material placement and side-shift capability of 26.1 in left / 20.2 in right. Maximum drawbar pull reaches 102 kN, supporting tough grading and scarifying work.
