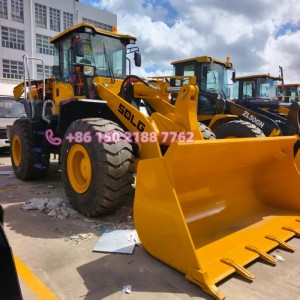

Used Chinese SDLG 958F SDLG958 Front Wheel Loader for Sale

Short Description:

Shanghai KASTO Construction Machinery Co., Ltd. is proud to offer the SDLG L958F, a high-end, long-wheelbase wheel loader designed for heavy-load conditions such as mining, quarrying, and large-scale earthmoving. The L958F model is powered by a reliable Weichai WD10G220E21 engine (or optional Deutz) delivering a rated power of 162 kW (217 HP). This engine, combined with the energy-saving VRT200 transmission, provides the SDLG 958F with a massive breakout force of 175 kN and a rated load capacity of 5,000 kg – 5,400 kg.

Engineered for stability, the SDLG L958F features a wheelbase extended to 3,300 mm, ensuring superior tipping load performance during high-intensity spading. The machine comes equipped with a standard 3.2 m³ bucket optimized for high-volume material handling, achieving a maximum dumping height of 3,100 mm. With its reinforced drive axles and an ergonomic cab offering 20% more visibility, the L958F guarantees both durability and operator comfort.

Send email to us

Product Detail

Product Tags

Chinese Famous Brand Wheel Loader SDLG L958F Wheel Loader for Sales

Product Description

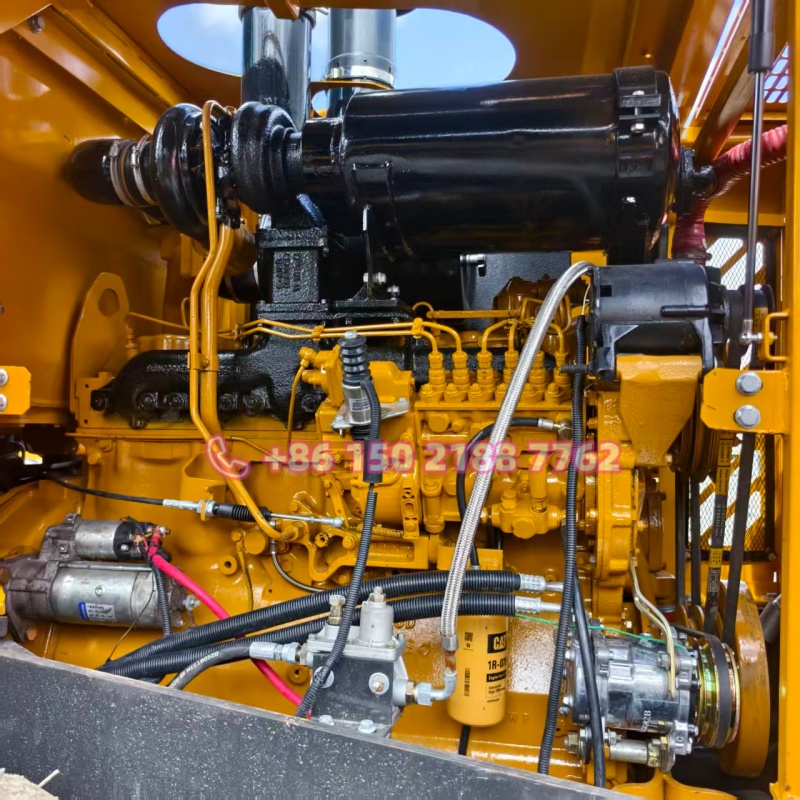

1.Wheel base increased to 3300mm to make it suitable for operation under heavy industrial and mining environment such as mines. Weichai engine (two-stage) is adopted to realize large torque, strong power, low oil consumption, high quality and low emission. Dalian Deutz BF6M series engines is optional.

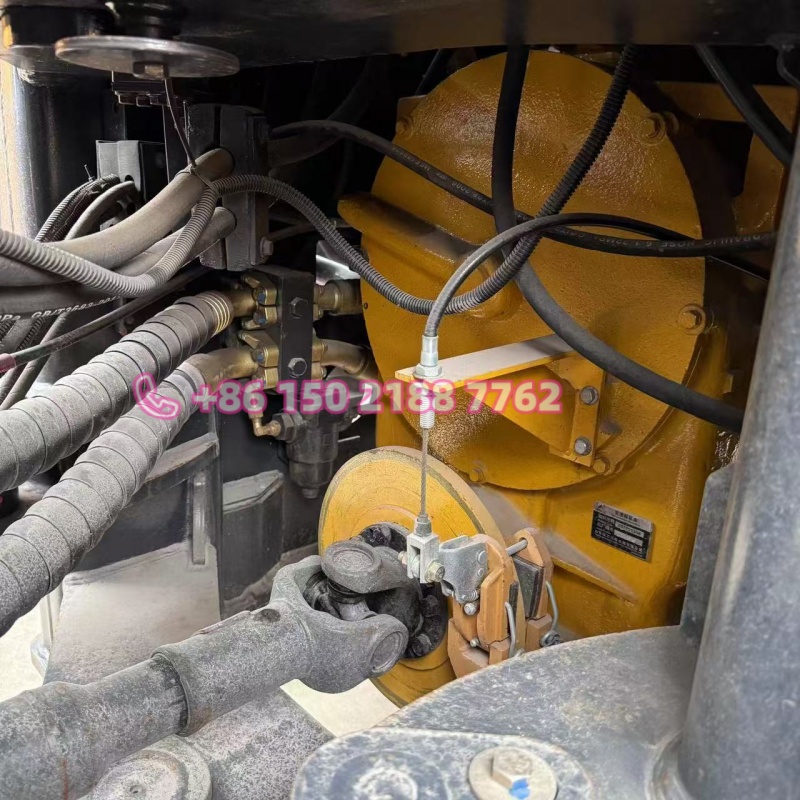

2.VRT200 gearbox with comprehensive efficiency increased by over 8% and front four and rear four electro hydraulic control shifts are employed with KD function and power cutoff and shift interlocking function, thus realizing high transmission efficiency, stable and easy operation.

3.SDLG adoptes Intelligent control cooling system to reduce energy consumption and ensure optimal working temperature of the entire machine.

Item	Specifications
Operating weight	17080 kg
Bucket capacity	3.0m³
Rated load	5000 kg
Max.breakout force	≥194kN
Max.dumping height	3110 mm
Dumping distance	1100 mm
Length×Width×Height	8230×3024×3450 mm
Max.tractive force	≥165 kN
Total time	≤10.0 s
Steering angel	40°
Tipping load	≥110 KN
Rated power	162 kW
