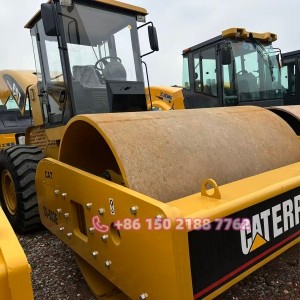

CAT Caterpillar CS683E Vibratory Soil Compactor 18.8-Ton Heavy-Duty Compactor for Sale

Short Description:

Shanghai KASTO Construction Machinery Co., Ltd. supplies the reliable CAT® CS683E vibratory soil compactor, a heavy-duty 18.8-ton class machine engineered for superior compaction performance in road construction, foundation preparation, and large-scale earthmoving projects.

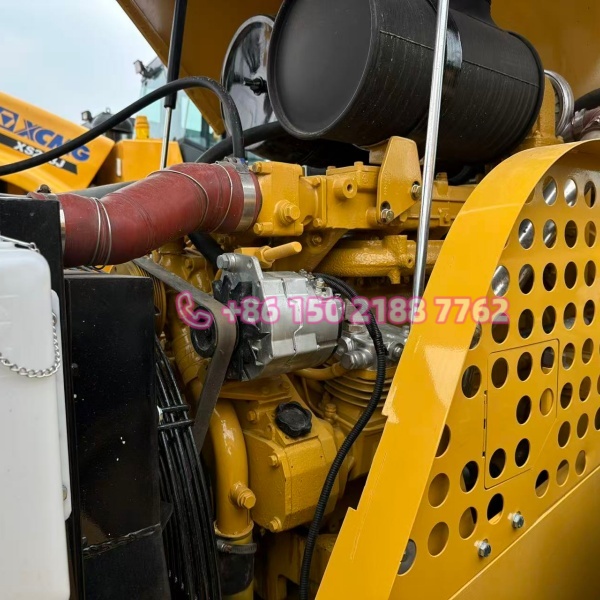

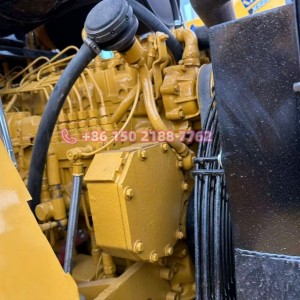

This model excels in demanding compaction applications. At its core is the robust Caterpillar 3056E diesel engine, delivering 129 kW of power for consistent, high-output operation . Its advanced dual-amplitude vibration system provides 332 kN of high exciting force and 166 kN of low exciting force, allowing operators to match compaction energy to specific soil types and layer thicknesses .

Send email to us

Product Detail

Product Tags

CAT Caterpillar CS683E Vibratory Soil Compactor 18.8-Ton Heavy-Duty Compactor for Sale

Product Description

Engine Model: Caterpillar 3056E
Rated Power: 129 kW
Operating Weight: 18,800 kg
Drum Width: 2,134 mm
Exciting Force (High/Low): 332 kN / 166 kN
Nominal Amplitude: 1.8 / 0.9 mm

Engine Model	Caterpillar 3056E
Rated Power	129 kW @ rpm (173 HP)
Operating Weight	18,800 kg
Drum Width	2,134 mm
Drum Diameter	1,524 mm
Exciting Force (High)	332 kN
Exciting Force (Low)	166 kN
Nominal Amplitude	1.8 / 0.9 mm
Static Linear Load	623 N/cm
Overall Dimensions (LxWxH):	6,000 x 2,134 x 3,020 mm
